PRP Starter Set with SERVOspin Evolve: a compact start

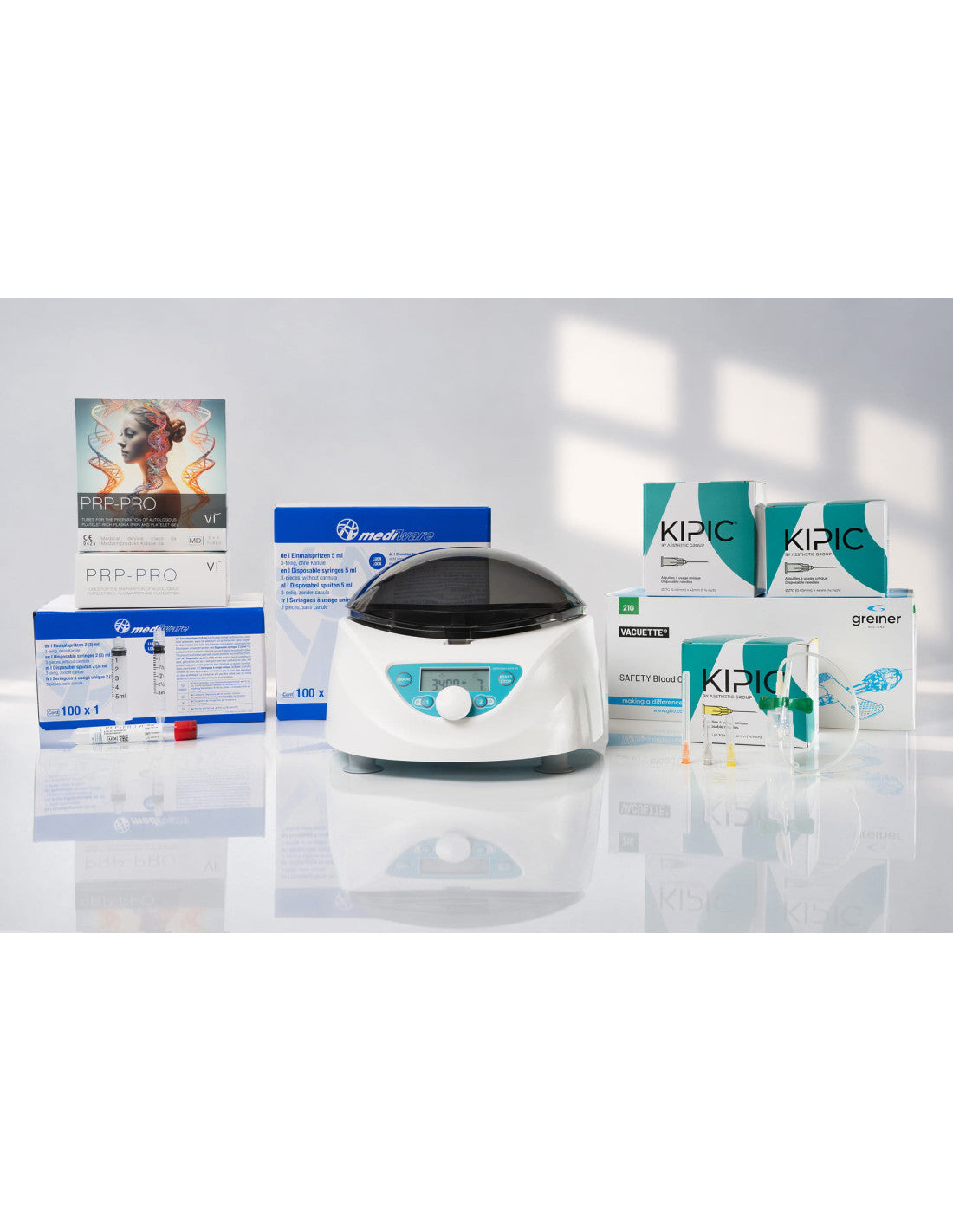

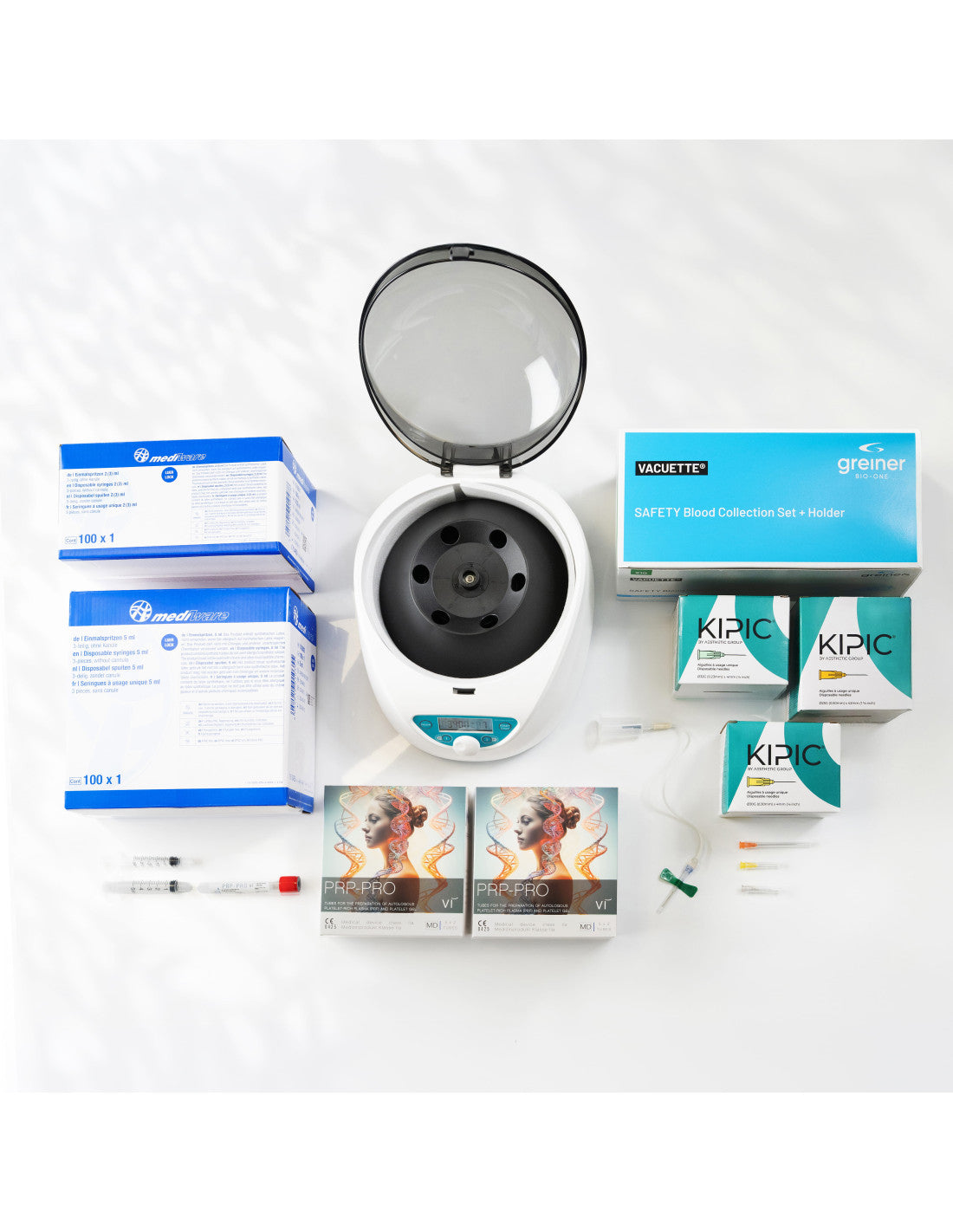

The PRP Starter Set combines the SERVOspin Evolve benchtop centrifuge (six places, 5.2 kg) with 20 Vi PRP-PRO tubes and consumables. For 1200 × g this works out at approximately 3,400 rpm.
- 1SERVOspin Evolve
- 20Vi PRP-PRO tubes
- 35safety blood collection sets
- 300KIPIC® needles
Contents

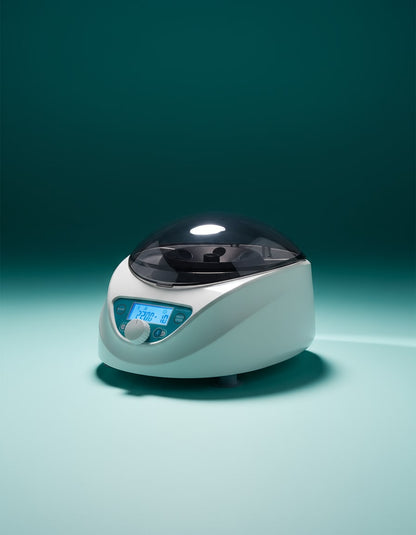

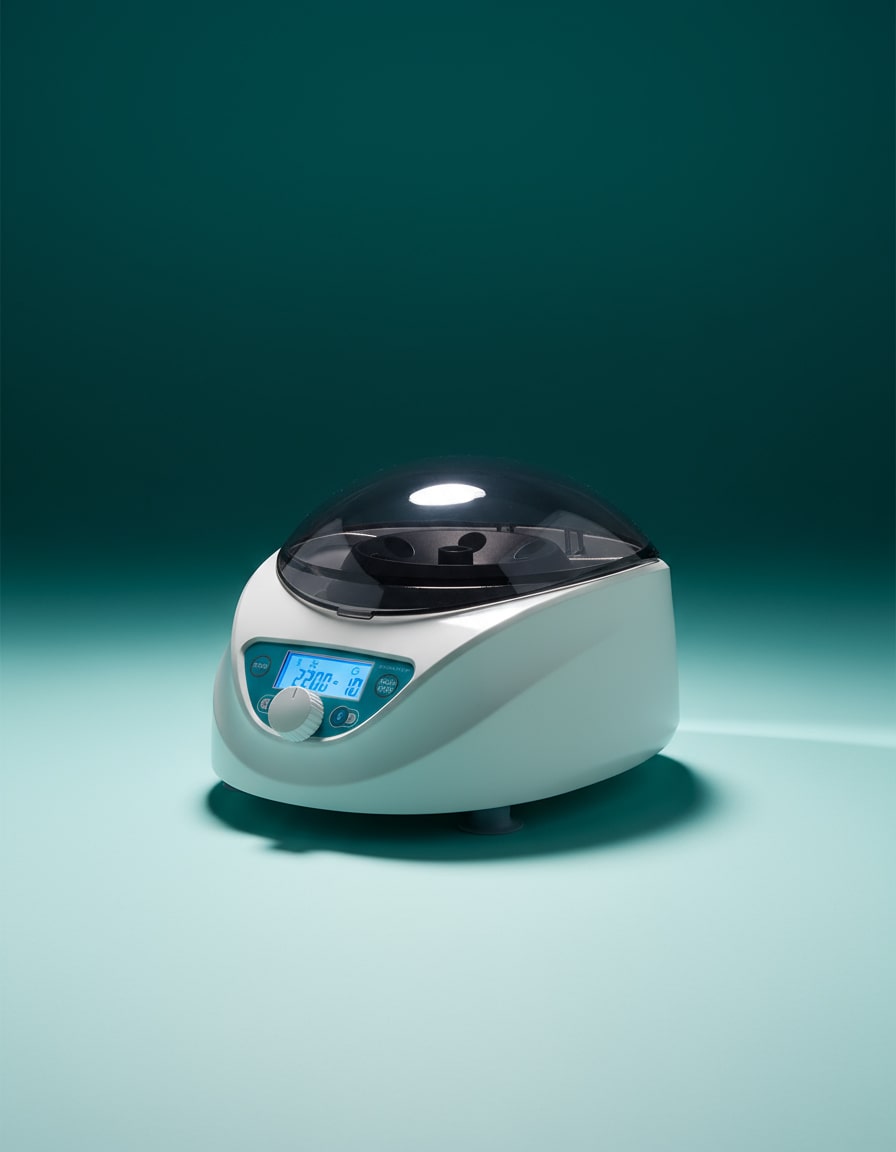

- 1 ×SERVOspin Evolve benchtop centrifugeIn vitro diagnostic medical device class A under the IVDR, 54° angle rotor 6 × 15 ml with adapter set
- 2 ×Vi PRP-PRO PRP tubes, pack of 1020 sterile tubes with sodium citrate and separator gel
- 1 ×Safety blood collection set 21G with holder, pack of 35
- 1 ×Mediware disposable syringes 5 ml, Luer lock, pack of 100
- 1 ×Mediware disposable syringes 2/3 ml, Luer lock, pack of 100
- 1 ×KIPIC® needle 25G × 42 mm, pack of 100
- 1 ×KIPIC® needle 30G × 4 mm, pack of 100
- 1 ×KIPIC® needle 27G × 13 mm, pack of 100
Every component is also available individually. Use the links to reorder consumables directly.
Two Starter Sets, one difference
Both Starter Sets contain 20 Vi PRP-PRO tubes, blood collection sets, syringes and KIPIC® needles. The difference is the centrifuge.
| Set | Centrifuge classification | Rotor | Maximum RCF | Speed for 1200 × g |
|---|---|---|---|---|
| This set: SERVOspin Evolve | In vitro diagnostic medical device class A under the IVDR | Angle rotor, 6 places | up to 2,600 × g | approx. 3,400 rpm |
| Starter Set with EBA 200 MD | Class IIa medical device under the MDR | Angle rotor, 8 places | up to 3,461 × g | approx. 3,500 rpm |
For needles, this set contains 27G × 13 mm, while the set with the EBA 200 MD contains 32G × 4 mm instead.
After unpacking
- 1Set upon a stable, level surface
- 2Set1200 × g for 7 minutes, approximately 3,400 rpm; the display can be switched to RCF
- 3Loadsymmetrically and with equal weight, smaller tubes in the matching adapters
You will find the complete workflow with Vi PRP-PRO under the tube, and device data under the SERVOspin Evolve.
Does the set suit your practice?
A good choice if you
- are setting up a new PRP workflow and want a compact start,
- manage with up to six tubes per run,
- want to source the device and consumables in one go.
A different set is a better fit if
- your workflow requires a centrifuge with a medical intended purpose: PRP Starter Set with EBA 200 MD,
- a suitable centrifuge is already in place: PRP Professional Set,
- you prepare PRF without anticoagulant: PRF Power Kit Pro.
Technical data
| Item number | 100451 |
|---|---|
| Centrifuge | SERVOspin Evolve, in vitro diagnostic medical device class A under IVDR (EU) 2017/746, 54° angle rotor 6 × 15 ml |
| Speed and RCF | 300 to 5,000 rpm, maximum 2,600 × g |
| Tubes | 20 × Vi PRP-PRO, standard centrifugation 1200 × g for 7 minutes |
| Intended users | qualified medical professionals and professional buyers |
Note for professional users: The set is a combination of individually labelled products from different manufacturers. It does not constitute a joint system approval. The SERVOspin Evolve is a class A in vitro diagnostic medical device and not a class IIa medical device; whether it is suitable for your workflow depends on the intended purpose of all products used. Do not transfer speed values between centrifuges without checking. Training, instruction and work instructions remain the responsibility of the facility.
Tools
RCF and speed calculator
Protocols state the relative centrifugal force in × g. The speed your centrifuge needs to reach it depends on the rotor radius.
Formula: RCF = 1.118 × 10−5 × r (cm) × n². The radius is the distance from the axis of rotation to the bottom of the tube in operating position. 86 mm corresponds to the Hettich EBA 200 MD with rotor E4413 and 9 to 10 ml tubes according to the manufacturer's documentation. 76, 101 and 126 mm are the radii of the Hettich EBA 270, depending on the bucket. The approx. 93 mm for the SERVOspin Evolve is derived from the manufacturer's figure of 2,600 × g at 5,000 rpm; with adapters the effective radius may be smaller. The result is a calculated value; the instructions for use of the tube and centrifuge take precedence.
Set finder
Two questions, one recommendation for getting started or restocking.
Answer both questions and only the matching options will remain.
PRP Starter Set with EBA 200 MD
Hettich EBA 200 MD, class IIa medical device, with 20 Vi PRP-PRO tubes and consumables.
€1.899,00
PRP Starter Set with SERVOspin Evolve
Compact SERVOspin Evolve, IVD class A, with 20 Vi PRP-PRO tubes and consumables.
€1.223,00You are on this page
PRF Power Kit Pro
Hettich EBA 200 MD with 30 empty Density glass tubes and consumables.
€1.603,00
PRP Professional Set
20 Vi PRP-PRO tubes and consumables, without centrifuge.
€433,66
Density glass tubes
Empty glass tubes for PRF, PRP with heparin or PRP with citrate.
€99,50
Safety and manufacturer information
PRP Starter Set with SERVOspin Evolve, Ref. 100451
prpmed Funkner e.K.
Siemensstraße 32, 35440 Linden, Germany
kontakt@prpmed.de
For professional use only.
